RCS-100 Medical Camera System

Digital, portable and multifunctional medical camera system

With the RCS-100, Riester introduces a new generation of a digital medical camera system with a full range of lenses. RCS-100 is available with an otoscope, general and dermatoscope lens.

Dimensions: 225 mm x 135 mm x 45 mm (8.86 in x 5.31 in x 1.77 in)
Weight: 292 g (10.3 oz)
Power supply: rechargeable Li-ion battery
5” full HD colour TFT-LCD display, including scratch proof cover 1.280×720 Pixel
Touch screen, very easy to use
Rotary wheel allows easy one-hand operation
16 GB internal memory
3.5 hours operating time in video mode

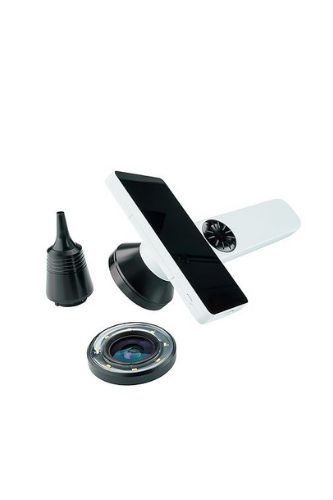

Bayonet connector for attachable optic modules for fast & easy change of lenses
Image and video function
Focus settings: automatic (otoscope/general lens), manual (all lenses)
RCS-100 user interface available in different languages: english, german, french, spanish, italian, russian, chinese, arabic)
New patient to be added via UI, info saved in name of picture / video file

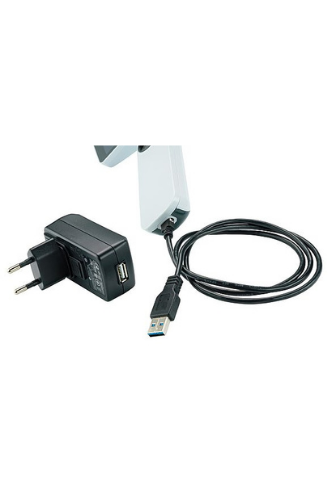

Power adapter incl. country plugs (EU, US, UK, Australia)
Charging time: 3 hours
Imaging

8 MPixel CMOS for high resolution and a scaleable image
Image format: JPEG
Video format: H.264
Resolution: Full HD true 3264 x 2448 Pixel

Connectivity

Micro USB 2.0, cable length min. 180cm
UVC function (to be activated via UI on camera) allows live picture display on 2nd screen in parallel
WiFi SD card (16GB) optionally available

Features of otoscope lens

Enhanced view of auditory canal
Magnification on display: 6x
12mm Ø field of view at 25mm distance from viewing object (with 4mm specula size)
9mm Ø field of view at 15mm distance from viewing object (with 4mm specula size)
8mm Ø filed of view at 10mm distance from viewing object (with 4mm specula size)
Disposable and reusable specula mm (in): 2 (0.08), 3 (0.12), 4 (0.16), 5 (0.2)
Light source: visible white LED
LED colour temperature: 4000K
Focus range: 8-25 mm (0.31-0.98 in)
Resolution: 8 MP CMOS
Air channel for pneumatic test (compatible with existing Riester connector)
Dimensions: 73.5 mm x 40 mm x 40 mm (1.57 in x 1.57 in x 1.57 in)
Weight: 96g (3.40 oz)
Features of general lens

Light source: visible white LED
LED colour temperature: 5.500K
Focus range mm (in): 30-4000 mm (1.18 – 157.48 in)
Resolution: 8 MP CMOS
Display magnification at 30mm object distance: 1x-4x
Field of view: 78°
Optical magnification: 2x
Digital magnification: 4x
Dimensions: 60.5 mm x 60.5 mm x 19 mm (23.82 in x 23.82 in x 0.75 in)
Weight: 66.4g (2.34 oz)

Features of dermatoscope lens

Accurate identification and measurement of skin lesions
No immersion necessary
Light source: visible white LED
LED colour temperature: 4000K
Field of view: 30 mm Ø (1.18 in Ø)
Resolution: 8 MP CMOS

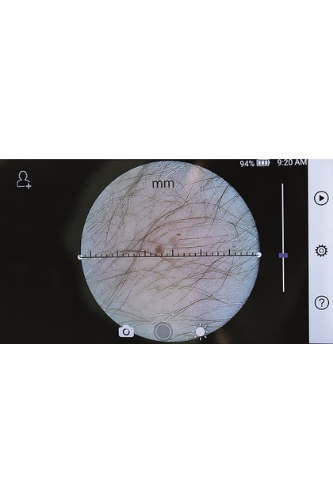

Digital movable ruler
Optical magnification: 2x (from optics)
Digital magnificaton: 4x (on top)
Displayed magnification: 2x – 8x
Dimensions: 62.1 mm x 62.1 mm x 36 mm (24.4 in x 24.4 in x 1.42 in)
Weight: 108.5 g (3.83 oz)
