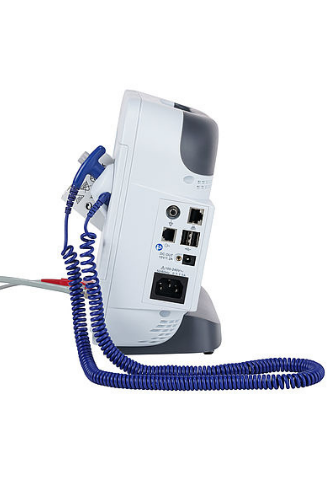

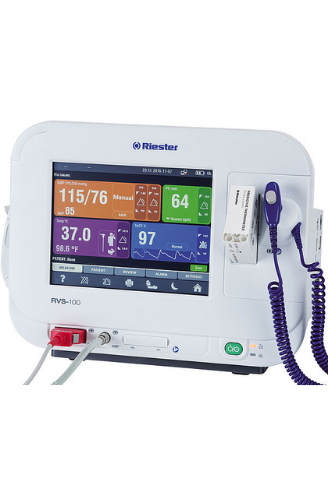

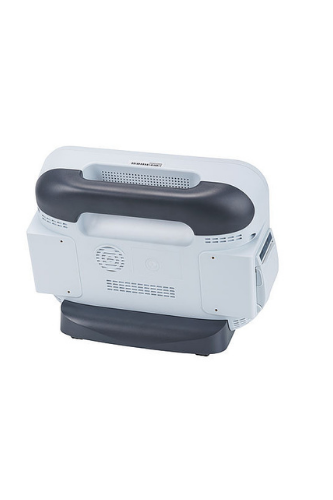

RVS 100 Advanced Vital Signs Monitor

Advanced vital signs monitor for pulse oximetry, blood pressure and temperature measurements.
Riester’s RVS-100 is an advanced vital signs monitor which offers pulse oximetry, blood pressure and temperature measurements. The device has ‘Monitor‘, ‘Spot-Check‘ and ‘Triage‘ profile options and a high performance touchscreen.

The RVS – 100 can communicate through a wired or wireless connection to the hospital’s EMR, according to the HL7 standard. The highly flexible, modular design offers many configurations and settings to suit the needs of hospitals, clinics and private practices, as well as long-term care settings

3 measurement modes (Monitor, Spot-check, Triage)
High-sensitivity 8” TFT colour touch screen with self-explanatory user interface and integrated help- function
Displays SYS, DIA, MAP, Pulse, Temp, Plethysmogram
Clinical grade NIBP* including averaging mode
Programmable NIBP averaging mode (2-5 readings)
Riester, Masimo* or Nellcor* Oximax SpO2
Predictive Thermometer (Filac 3000)
Connectivity with the EMR – follows the HL7 standard
LAN Connectivity as standard
Programmable alarms (audible, visible) with 3 priority levels
Supports nurse call RJ11 port
Available as wall, desk and floor model
Can be expanded to wall diagnostic station
Internal memory for 5,000 measurements
Lithium-ion battery with up to 17 hours ON time
(*includes neonate mode)

Options

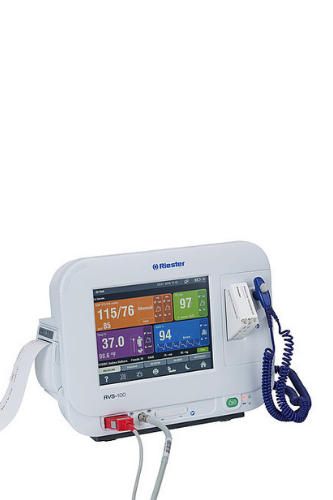

Thermal printer (internal)
Barcode reader
Mobile stand including basket for storage (cuffs, sensors, cables)
WiFi
Accessories supplied with monitor

NIBP extension tube

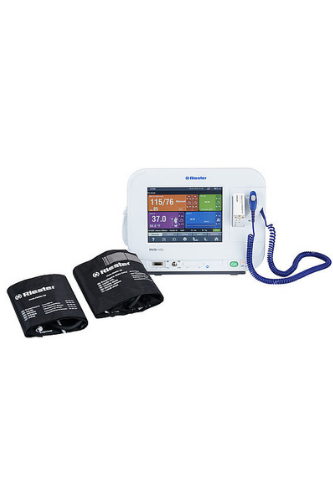

2 cuffs (adult & adult large incl. connectors)
SpO2 sensor adult
SpO2 extension cable
Oral temperature probe
Probe cover
